Key Features,

• Reliable and flexible implementation – entry-level flow-through filter
• Easy maintenance thanks to cleaning handles and bottom drain
• Pollutant level indicator and temperature indicator for convenient filter monitoring

Characteristics,

• Incl. OASE Clear Water Guarantee
• Oxygen enrichment through special water channelling

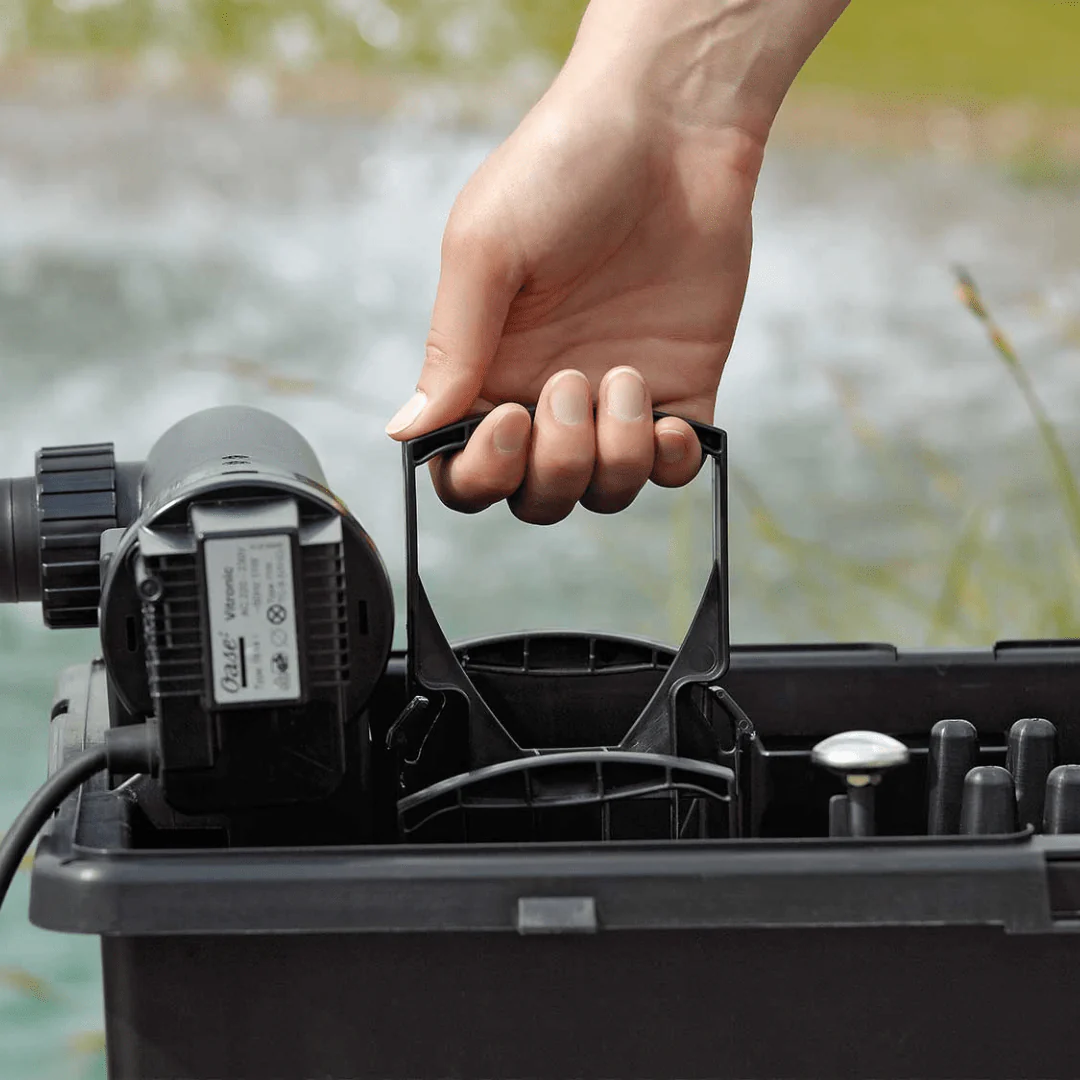

• Cleaning handles for convenient maintenance
• Including displays for pollutant level and water temperature

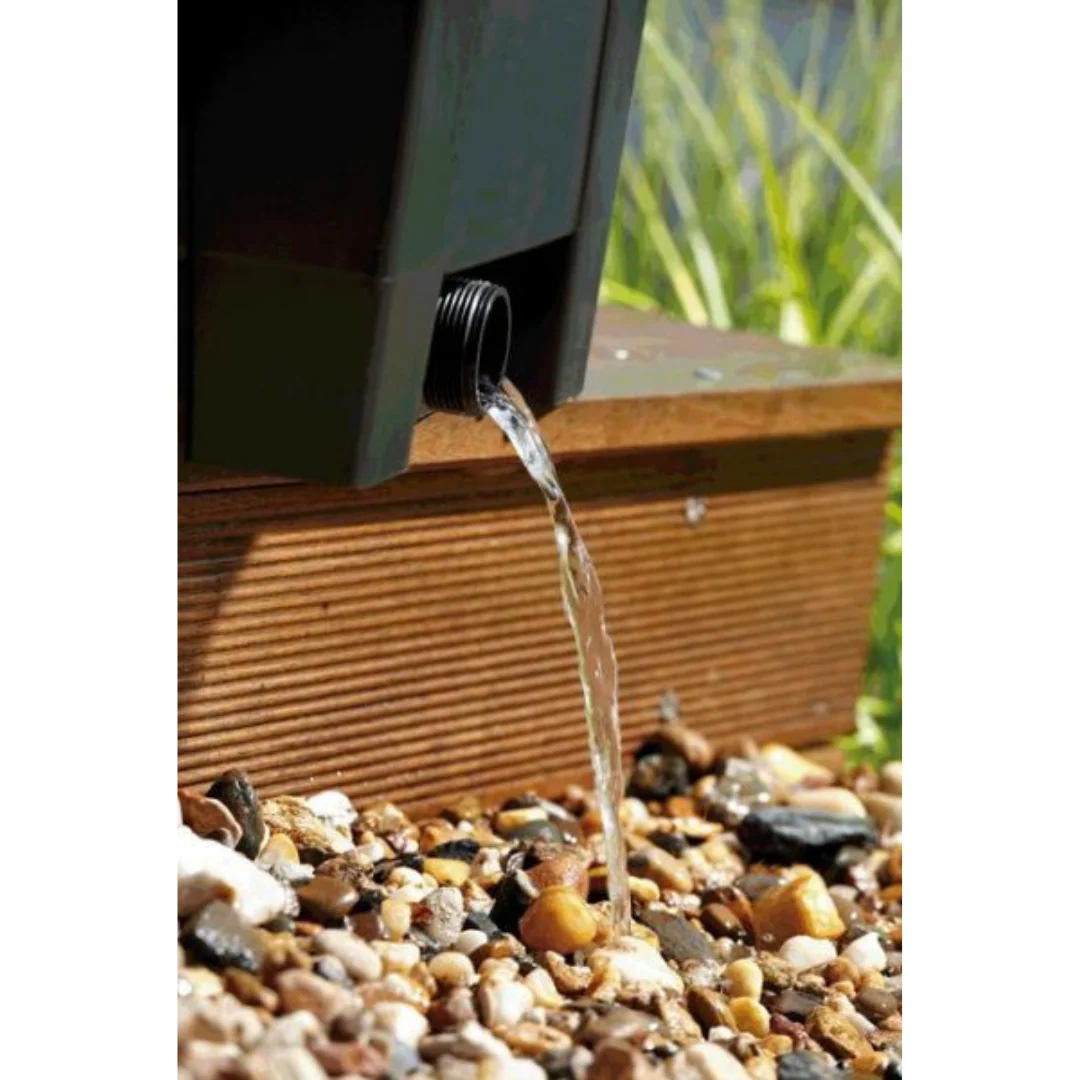

• Sludge drain for easy removal of coarse debris
• Easy to conceal; the filter can be recessed into the ground to ⅓ of its height
• Suitable for ponds up to 14.0 m3
• Included in the scope of delivery: 3 m 3/4" (19 mm) hose and filter pump 3500: 70 W; 3400 l/h Qmax; 2.7 m Hmax
• Combination of mechanical biological cleaning and effective UVC technology



BioSmart Set 14000:

Dimensions filter (L x W x H) mm 380 x 560 x 410
Net weight kg 8.50
Rated voltage 230 V / 50 Hz
Power consumption UVC W 14
Power cable length UVC m 3.00
Guarantee Years 2
UVC power W 11

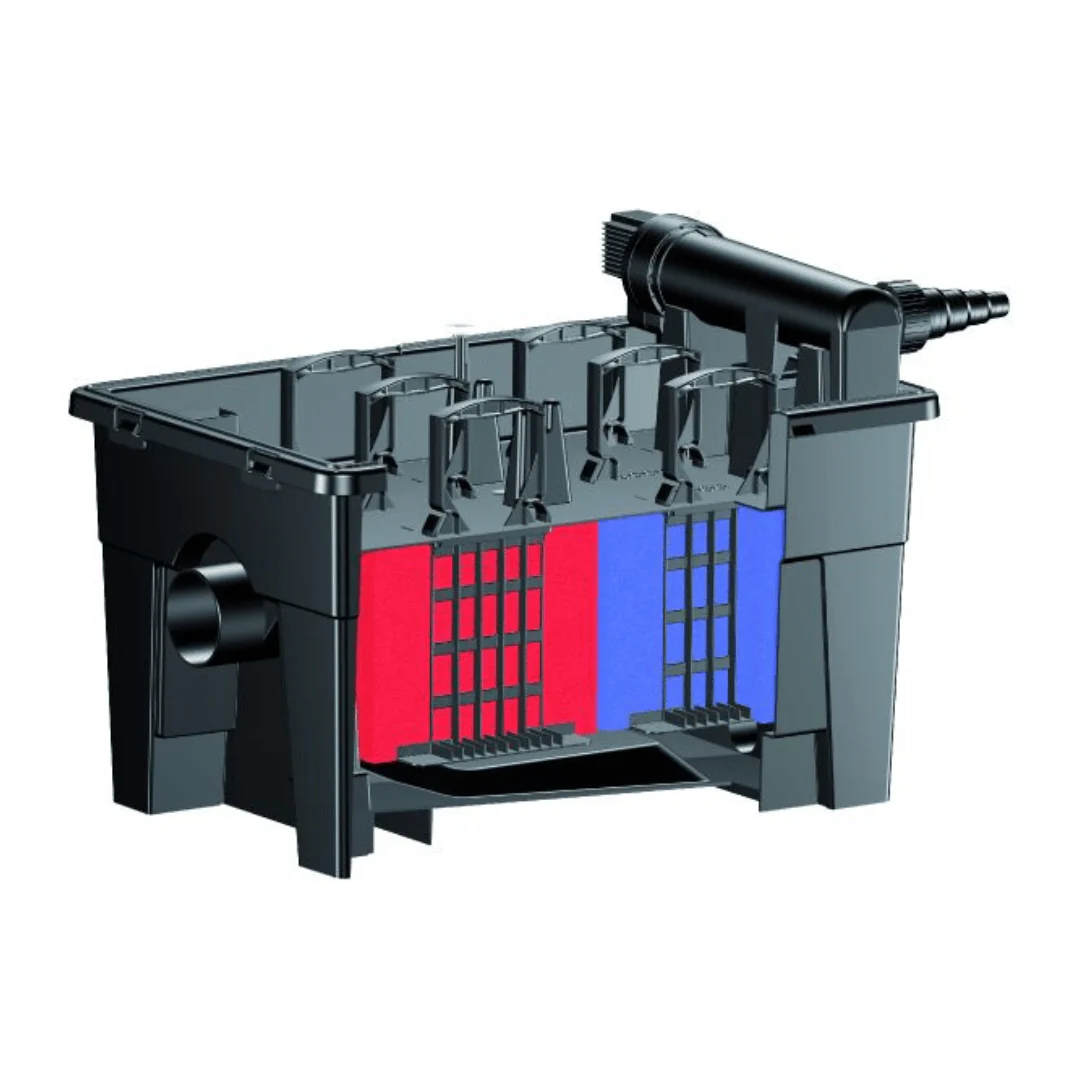

Number of filter foams, total Units 6
Number of blue filter foams Units 3
Number of red filter foams Units 3
Temperature display Yes
Inlet connections mm 19 / 25 / 32 / 38
Inlet connections ¾", 1", 1 ¼", 1 ½"
Outlet connections DN 75
Connections, sludge discharge mm 38
Sludge discharge connections 1 ½"
Corresponding filter/watercourse pump Filter pump 3500
Dimensions pump (L x W x H) – mm mm 190 x 175 x 110
Power consumption pump W 70
Max. flow rate l/h 5500
Power cable length pump m 10.00
Suitable for ponds up to max. m3 14.0
Suitable for ponds with fish stock m3 7.0
Suitable for ponds with koi m3 3.5
