Key Features,

• Effective clear water through the perfect combination of filter system and UVC technology
• Simple handling and convenient, patented cleaning mechanism
• Can be perfectly integrated into the natural pond landscape

Characteristic,

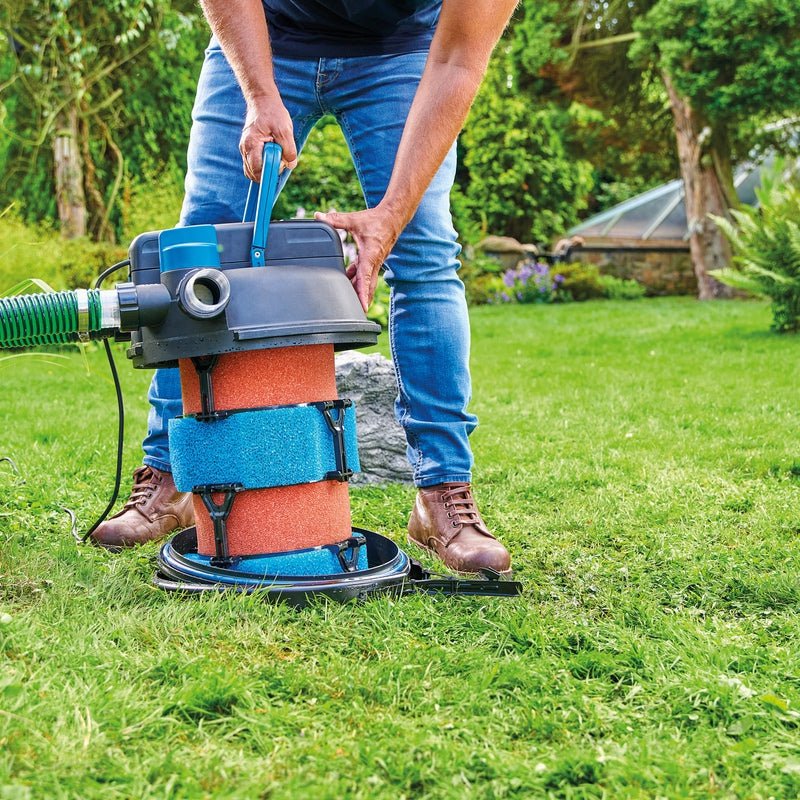

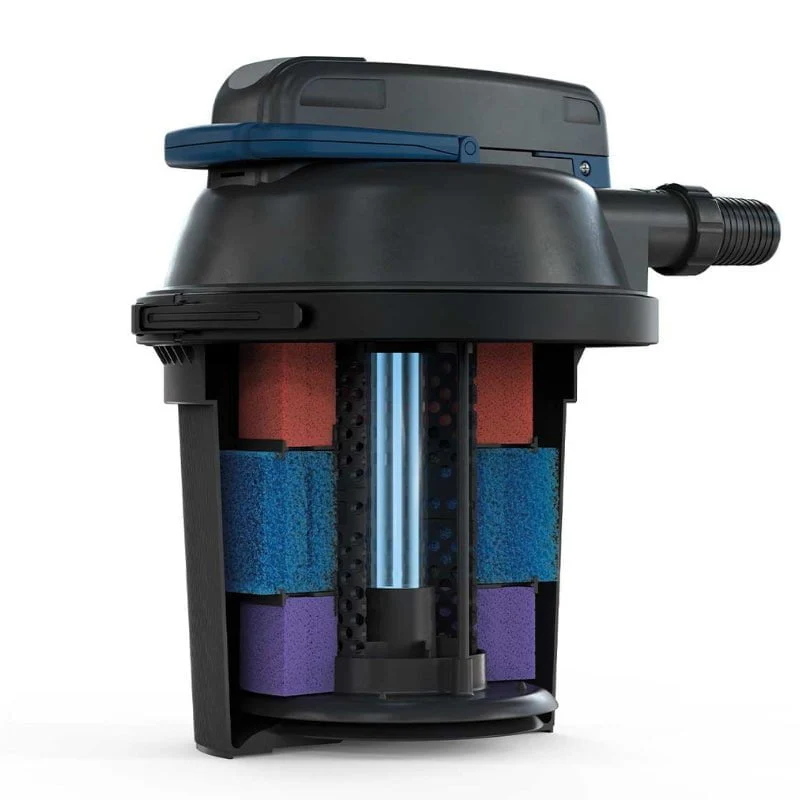

• POND FILTER: Patented cleaning mechanism with optimised filter sponges
• CONVENIENT: Easy to maintain and clean thanks to simple handle mechanism

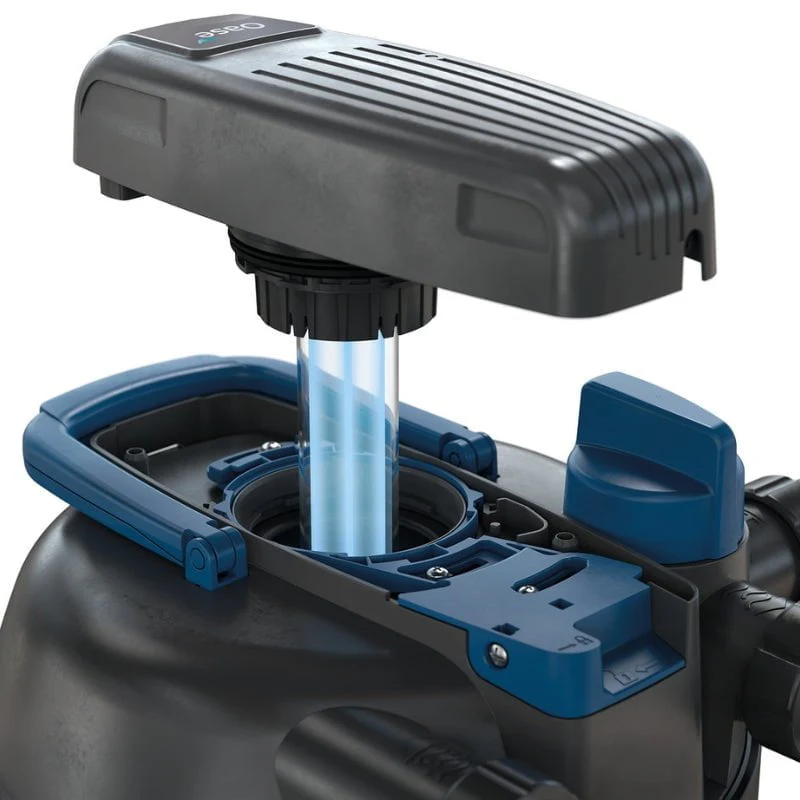

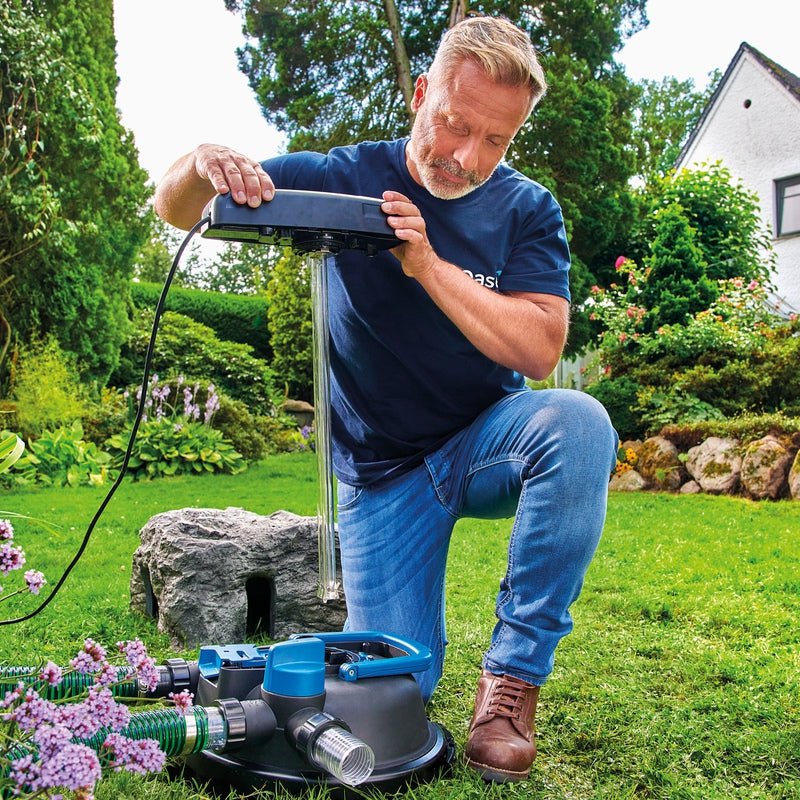

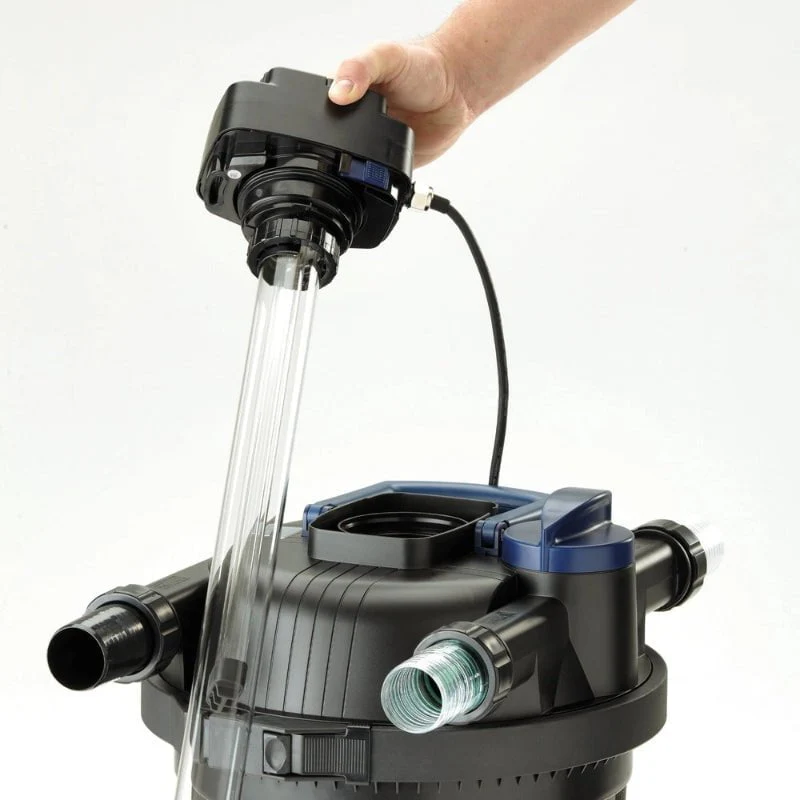

• EASY LAMP CHANGE: The UV lamp can be changed while the unit is running - no need to switch off the filter, no need to dismantle the quartz glass
• PROTECTED: The high-quality UVC housing protects the ballast unit from sunlight and moisture
• POWERFUL: All latest generation FiltoClear models feature upgraded, highly effective UV lamps

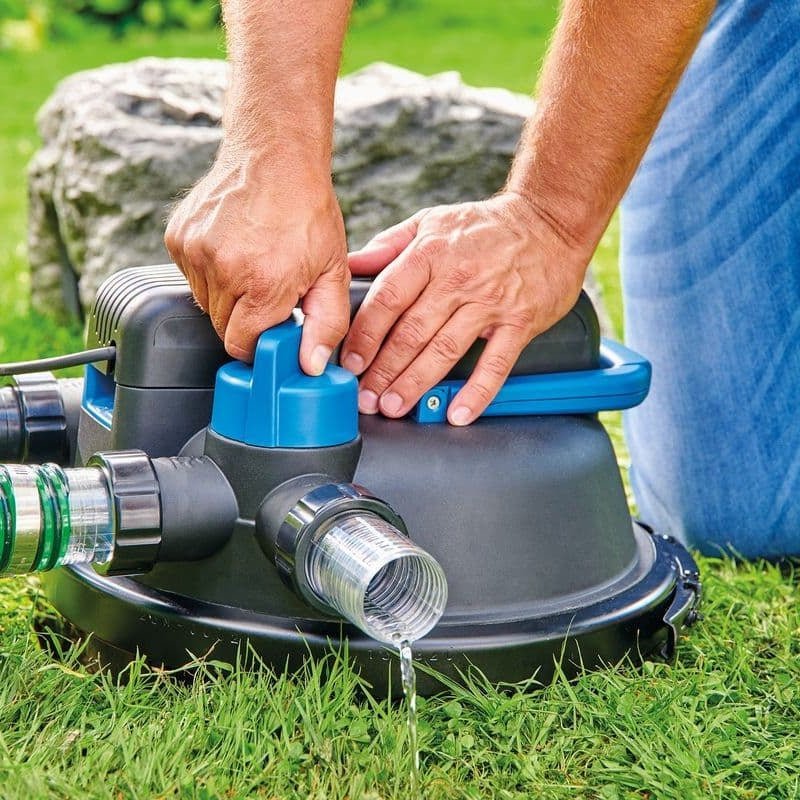

• 2-WAY VALVE: Choose whether the water flows into the pond or into the waste water after cleaning the filter
• IMPROVED EFFICIENCY: The built-in OASE bypass technology ensures optimum water flow and prevents the filter from clogging
• STABLE AND ROBUST: The hard-wearing housing made of high-quality plastic can be easily buried in the ground and impresses with its long durability
• UNDER PRESSURE: The metal clamping ring with simple lever function makes opening and closing a FiltoClear safer and easier than ever before


TECHNICAL DATA
Dimensions filter (L x W x H) mm : 380 x 380 x 488
Net weight kg : 14.50
Rated voltage filter : 220 - 240 V / 50 - 60 Hz
Power consumption UVC W : 24
UVC cleaning rotor : No
Guarantee Years : 2
Power cable length UVC m : 5.00
Number of blue filter foams Units : 1
Number of red filter foams Units : 1
Number of purple filter foams Units : 1
Inlet connections mm : 38 / 50
Connections, outlet mm : 38 / 50
Connections, sludge discharge mm : 38 / 50
Sludge discharge connections : 1 ½", 2"
Max. operating pressure bar : 0.2
Dimensions pump (L x W x H) – mm : 340 x 280 x 165
Rated voltage Pump : 220 - 240 V / 50 - 60 Hz
Power consumption pump W : 60
Max. flow rate l/h : 8000
Guarantee (+ request guarantee) pump Years : 3 + 2
Power cable length pump m : 10.00
Suitable for ponds up to max. m3 : 13.0
Suitable for ponds with fish stock m3 : 7.0
Suitable for ponds with koi m3 : 3.5
